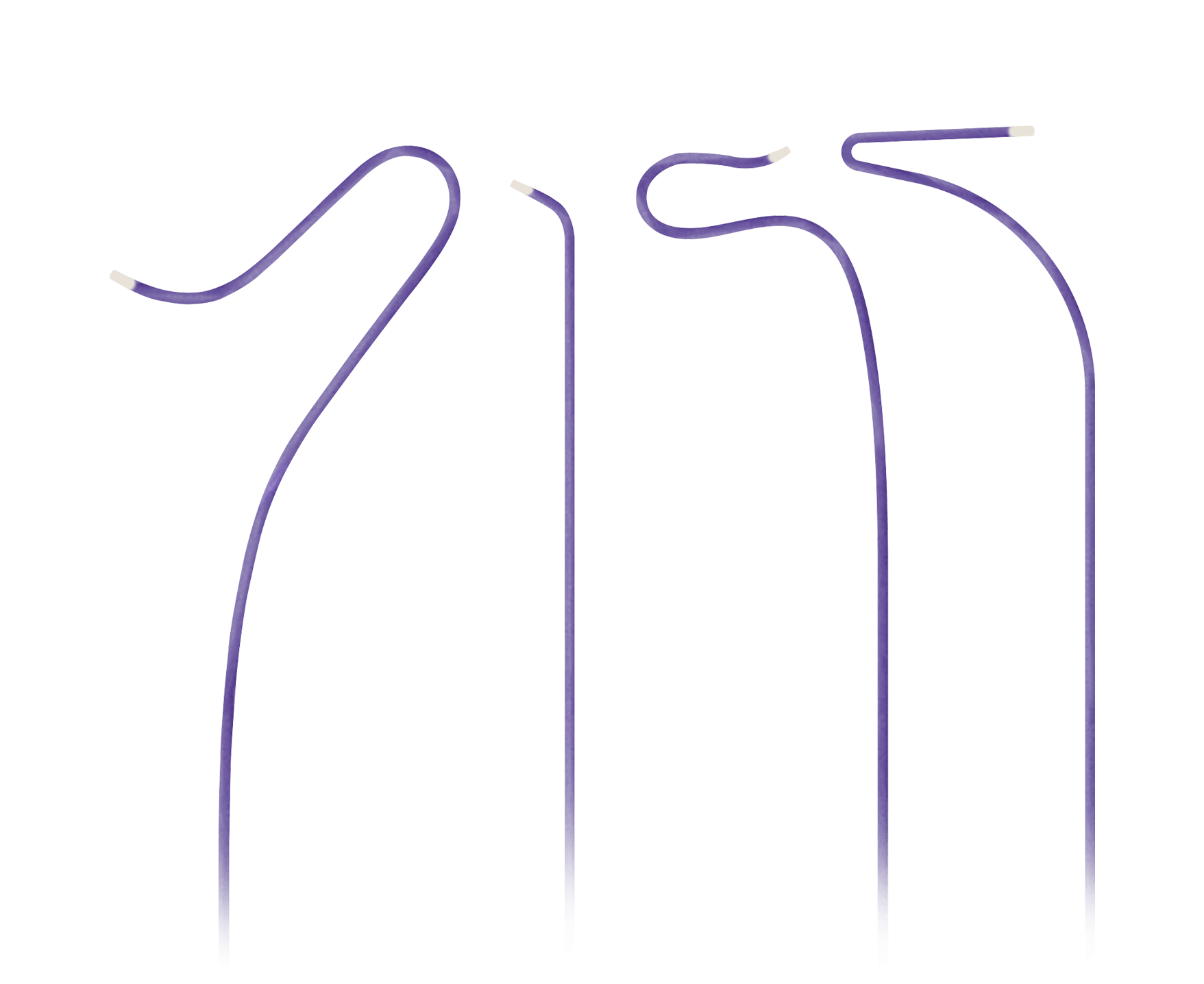

Catéter Angiográfico – Shun Conveyor
El catéter angiográfico está diseñado para su uso en procedimientos angiográficos, con el propósito de administrar medios radiopacos en sitios seleccionados dentro del sistema vascular.
Características
Seguridad Mejorada
La punta suave reduce el riesgo de disección arterial y daño a los vasos.
Control de Torque Excelente
El diseño trenzado de metal garantiza una transmisión de torque superior y resistencia a la flexión.
Flexibilidad y Durabilidad
La estructura de tres capas con trenzado de acero inoxidable ofrece la rigidez y elasticidad óptimas.
Tamaños Versátiles
Disponible en calibres de 5-6F para arterias femorales y radiales, y de 4F para intervenciones pediátricas y neurovasculares.
Resistencia a la Presión
Soporta hasta 1000 psi para inyecciones a alta presión.
Especificaciones técnicas
| Características Generales | |
| Diámetros Disponibles | 4, 5 y 6 Fr (Según curvas) |
| Composición | Pebax |
| Composición Cuerpo | Pebax |
| Características Particulares | |
| Presión Máxima Inyección | 1000 psi |
| Guía Compatible | 0,035(4F)-0,038 inch (5F,6F) |
| Longitudes Disponibles | , 80, 100 y 110,130 cm según curvas |
| Posibilidad agujeros laterales | Si según curvas |
| Radiopacidad | Distal |
| ID 4F-5F-6F | 1,07mm-1,2mm-1,47mm |
| OD 4F-5F-6F | 1,40mm-1,70mm-2mm |
Información de pedidos
Tip Configuration
Product Code 4F
Product Code 5F
Product Code 6F
Length (cm)
Accept Guidewire OD (in)
Side Holes
Applicable Vessels
JL2.5
/
/
622641
80
0.038
0
Left coronary
JL3.0
/
622147
622148
100
0.038
0
Left coronary
JL3.5
622601
622602
*622603
100
0.038
0
Left coronary
JL4.0
/
622643
/
110
0.038
0
Left coronary
JL4.5
622610
622611
622612
100
0.038
0
Left coronary
JL5.0
622613
622614
622615
100
0.038
0
Left coronary
JR3.5
622616
622617
*622618
100
0.038
2
Right coronary
JR4.0
622619
622621
*622623
100
0.038
2
Right coronary
PIG(S)
622653
622656
622607
65, 80, 90
0.038
0
Aorta
Tip Configuration
Product Code 4F
Product Code 5F
Product Code 6F
Length (cm)
Accept Guidewire OD (in)
Side Holes
Applicable Vessels
PIG145°
–
622609
622620
110
0.038
6
Aorta
PIG155°
–
622622
622624
110
0.038
6
Aorta
AL1
622657
622658
622659
100
0.038
0
Abdominal Opening, Left and Right Coronary
AL2
622660
622661
622662
100
0.038
0
Abdominal Opening, Left and Right Coronary
AL3
622663
622664
622665
100
0.038
0
Abdominal Opening, Left and Right Coronary
C1
–
622667
622668
65
0.038
0
Bronchial Artery, Limb Artery, Splenic Artery, Hepatic Artery, Gastro-duodenal Artery, Mesenteric Artery, Carotid Artery
C2
622672
622676
622678
100
0.038
0
Bronchial Artery, Limb Artery, Splenic Artery, Hepatic Artery, Gastro-duodenal Artery, Mesenteric Artery, Carotid Artery
C3
–
622679
622680
100
0.038
0
Abdominal Vessels
Tip Configuration
Product Code 4F
Product Code 5F
Product Code 6F
Length (cm)
Accept Guidewire OD (in)
Side Holes
Applicable Vessels
DAV
–
622685
–
65
0.035
0
Multi-purpose
–
622686
–
65
0.038
0
Multi-purpose
–
622687
–
100
0.038
0
Multi-purpose
–
622688
–
100
0.038
0
Multi-purpose
–
622689
–
125
0.035
0
Multi-purpose
FC3
–
622690
–
100
0.035
0
Multi-purpose
H1
–
622692
–
100
0.035
0
Intracranial vessels
622691
622693
622694
100
0.038
0
Intracranial vessels
H2
622695
622696
622697
100
0.038
0
Intracranial vessels
H3
622698
622699
622700
100
0.038
0
Intracranial vessels
HN5
–
624201
–
100
0.038
0
Intracranial vessels
JB1
–
624202
–
65
0.038
0
Intracranial vessels
JB1
–
624203
–
100
0.035
0
Intracranial vessels
–
624204
–
100
0.038
0
Intracranial vessels
JB2
–
624205
–
100
0.035
0
Intracranial vessels
–
624206
–
100
0.038
0
Intracranial vessels
KMP
–
624207
40
0.035
0
KMP
–
624208
40
0.038
0
KMP
–
624209
–
65
0.035
0
Multi-purpose
–
624210
–
65
0.038
0
Multi-purpose
–
624211
–
100
0.038
0
Multi-purpose
Tip Configuration
Product Code 4F
Product Code 5F
Product Code 6F
Length (cm)
Accept Guidewire OD (in)
Side Holes
Applicable Vessels
LEV1
–
624212
–
65
0.038
0
Abdominal vessels
MIK
–
624213
–
80
0.038
0
Abdominal vessels
MPA1
624214
624216
624218
80
0.038
0
Multi-purpose
624215
624217
624219
80
0.038
2
Multi-purpose
MPA2
624220
624222
624224
80
0.038
0
Multi-purpose
624221
624223
624225
80
0.038
2
Multi-purpose
MPA3
624226
624228
624230
80
0.038
0
Multi-purpose
624226
624228
624230
80
0.038
2
MPA
–
624232
–
80
0.038
0
Multi-purpose
MPB
–
624236
–
80
0.038
0
Multi-purpose
PIG
–
624237
–
100
0.038
10
Aorta
RBT
–
624238
–
90
0.035
0
Hepatic artery
RC1
–
624240
–
65
0.035
0
Hepatic artery
RC1
–
624241
–
65
0.035
0
Hepatic artery
RC2
–
624242
–
65
0.038
0
Hepatic artery
RDC
–
624243
–
65
0.038
0
Hepatic artery
RH
624244
624245
624246
80
0.038
0
Hepatic artery
RIM
–
624247
–
65
0.035
0
Left gastric artery
RIM
–
624248
–
65
0.035
0
Left gastric artery
RIM
–
624249
–
100
0.038
0
Left gastric artery
RLG
–
624250
624252
80
0.038
0
Left gastric artery
| Tip Configuration | Product Code 4F | Product Code 5F | Product Code 6F | Length (cm) | Accept Guidewire OD (in) | Side Holes | Applicable Vessels |
| JL2.5 | / | / | 622641 | 80 | 0.038 | 0 | Left coronary |
| JL3.0 | / | 622147 | 622148 | 100 | 0.038 | 0 | Left coronary |
| JL3.5 | 622601 | 622602 | *622603 | 100 | 0.038 | 0 | Left coronary |
| JL4.0 | / | 622643 | / | 110 | 0.038 | 0 | Left coronary |
| JL4.5 | 622610 | 622611 | 622612 | 100 | 0.038 | 0 | Left coronary |
| JL5.0 | 622613 | 622614 | 622615 | 100 | 0.038 | 0 | Left coronary |
| JR3.5 | 622616 | 622617 | *622618 | 100 | 0.038 | 2 | Right coronary |
| JR4.0 | 622619 | 622621 | *622623 | 100 | 0.038 | 2 | Right coronary |
| PIG(S) | 622653 | 622656 | 622607 | 65, 80, 90 | 0.038 | 0 | Aorta |
| Tip Configuration | Product Code 4F | Product Code 5F | Product Code 6F | Length (cm) | Accept Guidewire OD (in) | Side Holes | Applicable Vessels |
| PIG145° | – | 622609 | 622620 | 110 | 0.038 | 6 | Aorta |
| PIG155° | – | 622622 | 622624 | 110 | 0.038 | 6 | Aorta |
| AL1 | 622657 | 622658 | 622659 | 100 | 0.038 | 0 | Abdominal Opening, Left and Right Coronary |
| AL2 | 622660 | 622661 | 622662 | 100 | 0.038 | 0 | Abdominal Opening, Left and Right Coronary |
| AL3 | 622663 | 622664 | 622665 | 100 | 0.038 | 0 | Abdominal Opening, Left and Right Coronary |
| C1 | – | 622667 | 622668 | 65 | 0.038 | 0 | Bronchial Artery, Limb Artery, Splenic Artery, Hepatic Artery, Gastro-duodenal Artery, Mesenteric Artery, Carotid Artery |
| C2 | 622672 | 622676 | 622678 | 100 | 0.038 | 0 | Bronchial Artery, Limb Artery, Splenic Artery, Hepatic Artery, Gastro-duodenal Artery, Mesenteric Artery, Carotid Artery |
| C3 | – | 622679 | 622680 | 100 | 0.038 | 0 | Abdominal Vessels |
| Tip Configuration | Product Code 4F | Product Code 5F | Product Code 6F | Length (cm) | Accept Guidewire OD (in) | Side Holes | Applicable Vessels |
| DAV | – | 622685 | – | 65 | 0.035 | 0 | Multi-purpose |
| – | 622686 | – | 65 | 0.038 | 0 | Multi-purpose | |
| – | 622687 | – | 100 | 0.038 | 0 | Multi-purpose | |
| – | 622688 | – | 100 | 0.038 | 0 | Multi-purpose | |
| – | 622689 | – | 125 | 0.035 | 0 | Multi-purpose | |
| FC3 | – | 622690 | – | 100 | 0.035 | 0 | Multi-purpose |
| H1 | – | 622692 | – | 100 | 0.035 | 0 | Intracranial vessels |
| 622691 | 622693 | 622694 | 100 | 0.038 | 0 | Intracranial vessels | |
| H2 | 622695 | 622696 | 622697 | 100 | 0.038 | 0 | Intracranial vessels |
| H3 | 622698 | 622699 | 622700 | 100 | 0.038 | 0 | Intracranial vessels |
| HN5 | – | 624201 | – | 100 | 0.038 | 0 | Intracranial vessels |
| JB1 | – | 624202 | – | 65 | 0.038 | 0 | Intracranial vessels |
| JB1 | – | 624203 | – | 100 | 0.035 | 0 | Intracranial vessels |
| – | 624204 | – | 100 | 0.038 | 0 | Intracranial vessels | |
| JB2 | – | 624205 | – | 100 | 0.035 | 0 | Intracranial vessels |
| – | 624206 | – | 100 | 0.038 | 0 | Intracranial vessels | |
| KMP | – | 624207 | 40 | 0.035 | 0 | ||
| KMP | – | 624208 | 40 | 0.038 | 0 | ||
| KMP | – | 624209 | – | 65 | 0.035 | 0 | Multi-purpose |
| – | 624210 | – | 65 | 0.038 | 0 | Multi-purpose | |
| – | 624211 | – | 100 | 0.038 | 0 | Multi-purpose |
| Tip Configuration | Product Code 4F | Product Code 5F | Product Code 6F | Length (cm) | Accept Guidewire OD (in) | Side Holes | Applicable Vessels | ||||||||
| LEV1 | – | 624212 | – | 65 | 0.038 | 0 | Abdominal vessels | ||||||||
| MIK | – | 624213 | – | 80 | 0.038 | 0 | Abdominal vessels | ||||||||
| MPA1 | 624214 | 624216 | 624218 | 80 | 0.038 | 0 | Multi-purpose | ||||||||
| 624215 | 624217 | 624219 | 80 | 0.038 | 2 | Multi-purpose | |||||||||
| MPA2 | 624220 | 624222 | 624224 | 80 | 0.038 | 0 | Multi-purpose | ||||||||
| 624221 | 624223 | 624225 | 80 | 0.038 | 2 | Multi-purpose | |||||||||
| MPA3 | 624226 | 624228 | 624230 | 80 | 0.038 | 0 | Multi-purpose | ||||||||
| 624226 | 624228 | 624230 | 80 | 0.038 | 2 | ||||||||||
| MPA | – | 624232 | – | 80 | 0.038 | 0 | Multi-purpose | ||||||||
| MPB | – | 624236 | – | 80 | 0.038 | 0 | Multi-purpose | ||||||||
| PIG | – | 624237 | – | 100 | 0.038 | 10 | Aorta | ||||||||
| RBT | – | 624238 | – | 90 | 0.035 | 0 | Hepatic artery | ||||||||
| RC1 | – | 624240 | – | 65 | 0.035 | 0 | Hepatic artery | ||||||||
| RC1 | – | 624241 | – | 65 | 0.035 | 0 | Hepatic artery | ||||||||
| RC2 | – | 624242 | – | 65 | 0.038 | 0 | Hepatic artery | ||||||||
| RDC | – | 624243 | – | 65 | 0.038 | 0 | Hepatic artery | ||||||||
| RH | 624244 | 624245 | 624246 | 80 | 0.038 | 0 | Hepatic artery | ||||||||
| RIM | – | 624247 | – | 65 | 0.035 | 0 | Left gastric artery | ||||||||
| RIM | – | 624248 | – | 65 | 0.035 | 0 | Left gastric artery | ||||||||
| RIM | – | 624249 | – | 100 | 0.038 | 0 | Left gastric artery | ||||||||
| RLG | – | 624250 | 624252 | 80 | 0.038 | 0 | Left gastric artery | ||||||||
