OrbusNeich

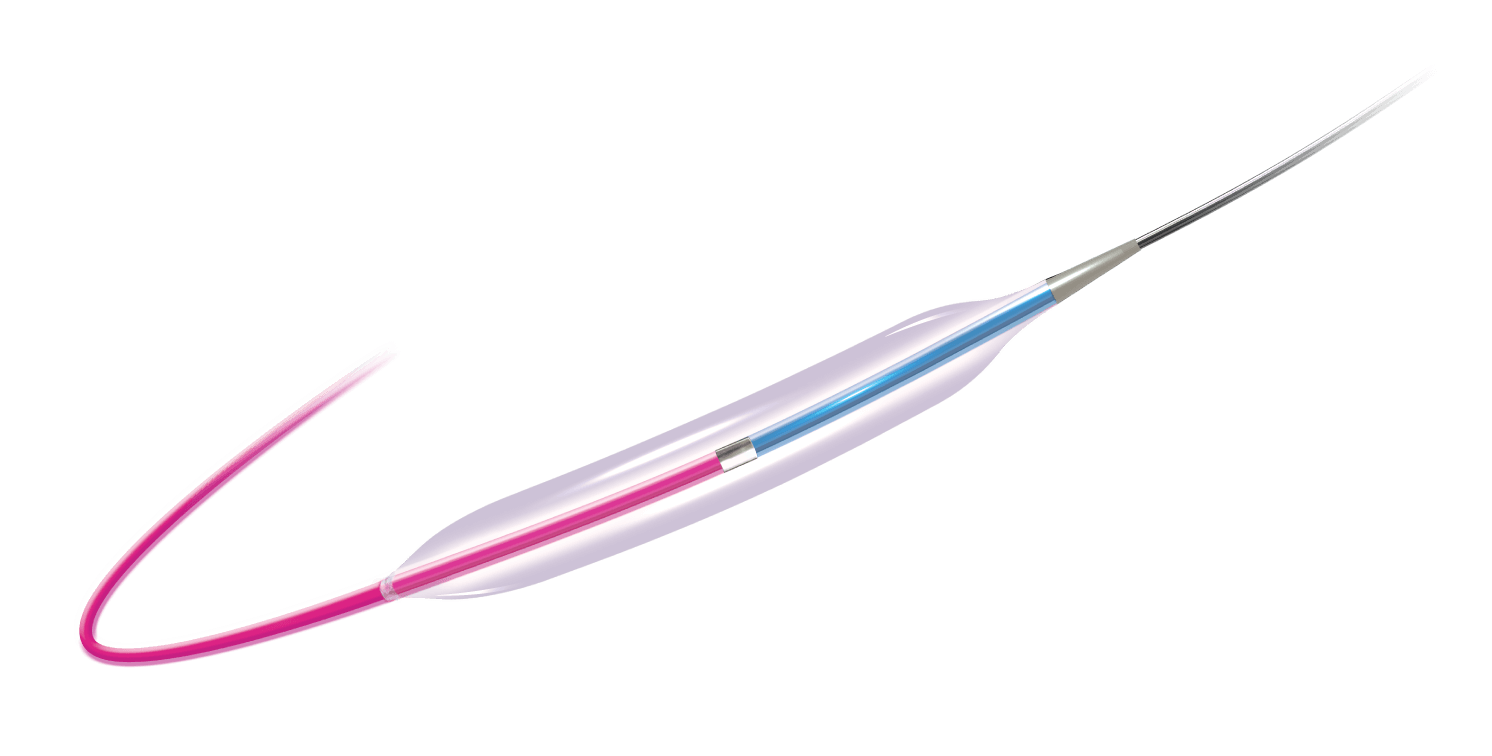

Sapphire 3 CTO
* Producto comercializado exclusivamente en Portugal
Características
Máxima capacidad de cruce, diseñado específicamente para cruzar lesiones complejas y oclusiones totales crónicas (CTO).
Estructura
Especificaciones técnicas
| Catheter Type | Rapid Exchange |
| Proximal Shaft | 1.9F |
| Distal Shaft | 2.36F |
| Catheter Working Length | 145 cm |
| Tip Length | 1.5 mm |
| Marker Band(s) | Single |
| Crossing Profile | 0.0208” |
| Coating | Hydrophilic (distal tip to guidewire exit port); Hydrophobic (guidewire lumen) |
| Nominal Pressure (NOM) | 6 atm |
| Rated Burst Pressure (RBP) | 16 atm |
| Balloon Material | Nylon |
| Balloon Folds | 2 (0.85 mm – 1.00 mm); 3 (1.25 mm) |
| Balloon Diameters (mm) | 0.85, 1.0, 1.25 |
| Balloon Lengths (mm) | 5, 8, 10, 15 |
| Guiding Catheter Compatibility | 5F |
Información de pedidos
Balloon Diameter (mm)
Balloon Working Length (mm)
5
8
10
15
0.85
208-053-6J
–
208-103-6J
–
1.0
210-053-6J
210-083-6J
210-103-6J
210-153-6J
1.25
212-053-6J
212-083-6J
212-103-6J
212-153-6J
Pressure (atm)
Balloon Diameter (mm)
0.85
1
1.25
2
0.78
0.94
1.18
4
0.82
0.97
1.22
6 (NOM)
0.85
1.00
1.25
8
0.88
1.03
1.28
10
0.92
1.06
1.32
12
0.95
1.09
1.35
14
0.98
1.12
1.38
16 (RBP)
1.01
1.15
1.42
18
1.05
1.18
1.45
20
1.08
1.21
1.48
| Balloon Diameter (mm) | Balloon Working Length (mm) | |||
| 5 | 8 | 10 | 15 | |
| 0.85 | 208-053-6J | – | 208-103-6J | – |
| 1.0 | 210-053-6J | 210-083-6J | 210-103-6J | 210-153-6J |
| 1.25 | 212-053-6J | 212-083-6J | 212-103-6J | 212-153-6J |
| Pressure (atm) | Balloon Diameter (mm) | ||
| 0.85 | 1 | 1.25 | |
| 2 | 0.78 | 0.94 | 1.18 |
| 4 | 0.82 | 0.97 | 1.22 |
| 6 (NOM) | 0.85 | 1.00 | 1.25 |
| 8 | 0.88 | 1.03 | 1.28 |
| 10 | 0.92 | 1.06 | 1.32 |
| 12 | 0.95 | 1.09 | 1.35 |
| 14 | 0.98 | 1.12 | 1.38 |
| 16 (RBP) | 1.01 | 1.15 | 1.42 |
| 18 | 1.05 | 1.18 | 1.45 |
| 20 | 1.08 | 1.21 | 1.48 |
